The Accomplishment of Perfect Products & Company

HOME >

Leveling Foot

>SFR Series

Product Code System

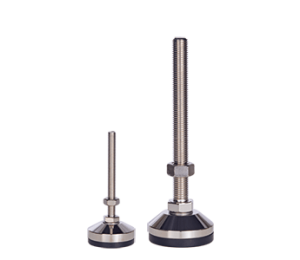

SFR Series
      • Our levelers are popular because there is less damage and no problem with bending when adjusting the height by applying a high-quality bolt. They are chosen by customers thanks to their anti-vibration function and better durability.
        They are used in many places such as conveyor lines, various stage devices, research equipment, medical racks, heavy industry, construction, etc.

      • ● Bolt/Nut
        ㆍCarbon Steel
        ● Pad
        ㆍStainless Steel + NBR
        ● Finish
        ㆍNi plated / Polishing

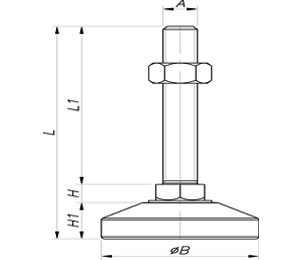

Model Dimension Material Load Capacity
(kg/4PCS)
L1  H1 Bolt/Nut Pad
SFR-16 50 96 35 11 Ø80
M16x2.0 StainlessSteel Stainless Steel & NBR 2000
80 126
100 146
130 176
150 196
180 226
200 246
SFR-20 100 149 14 M20x2.5 3000
130 179
150 199
180 229
200 249



Meterial Surface Treatment
Stainless Steel Polishing
